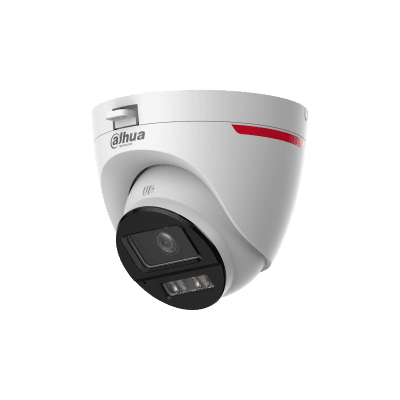

Dahua 5MP WizColor HDCVI Fixed-focal Eyeball Camera HAC-HDW1519SL-A-PRO
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HDW1519SL-A-PRO is a 5mp wizcolor hdcvi fixed-focal eyeball camera. * The parameters and datasheets below can only be applied to 1519 series.; * In order to use the 5 MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.; 24/7 color imaging, max 25 fps@5 MP (16:9 video output).; AI-ISP.; Smart Light+.; 30 m illumination distance.; 3D NR.. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
* The parameters and datasheets below can only be applied to 1519 series.
* In order to use the 5 MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
24/7 color imaging, max 25 fps@5 MP (16:9 video output).
AI-ISP.
Features
Product features
+
Product features
+* The parameters and datasheets below can only be applied to 1519 series.
* In order to use the 5 MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
24/7 color imaging, max 25 fps@5 MP (16:9 video output).
AI-ISP.
Smart Light+.
30 m illumination distance.
3D NR.
3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
IP67, 12 VDC.
65 dB
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HDW1519SL-A-PRO
Series
HDCVI Lite Series / 5MP
Image Sensor
5 MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.0002 lux@F1.6 (Color, 30 IRE) 0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
Warm light: 30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (Warm light)
Angle Adjustment
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.6
Field of View
2.8 mm: H: 112°; V: 61°; D: 132.4° 3.6 mm: H: 89.1°; V: 48.5°; D: 104°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.0 m (3.28 ft) 3.6 mm: 1.5 m (4.92 ft)
DORI Distance
Lens Detect Observe Recognize Identify 2.8 mm 61.2 m ( 200.79 ft) 24.5 m ( 80.38 ft) 12.2 m ( 40.03 ft) 6.1 m ( 20.01 ft) 3.6 mm 77.6 m ( 254.59 ft) 31.0 m ( 101.71 ft) 15.5 m ( 50.85 ft) 7.8 m ( 25.59 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Lens
Detect
2.8 mm
61.2 m ( 200.79 ft)
3.6 mm
77.6 m ( 254.59 ft)
Video Frame Rate
CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960 H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night
Color
BLC
BLC; HLC; WDR; HLC-Pro
WDR
DWDR
White Balance
Auto
Gain Control
Auto/Manual
Noise Reduction
3D NR
Illumination Mode
Smart Light
Mirror
Yes
Certifications
CE-LVD: EN 62368-1 CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B
Built-in Mic
Yes
Camera Audio
CVI; TVI
Pick-up Distance
8 m (26.25 ft)
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power Supply
12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption
Max 3.6 W (12 VDC, LED on)
Operating Temperature
–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Casing Material
Plastic
Product Dimensions
Φ97.1 mm × 90.4 mm (Φ3.82" × 3.56")
Net Weight
0.21 kg (0.46 lb)
Gross Weight
0.30 kg (0.66 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
