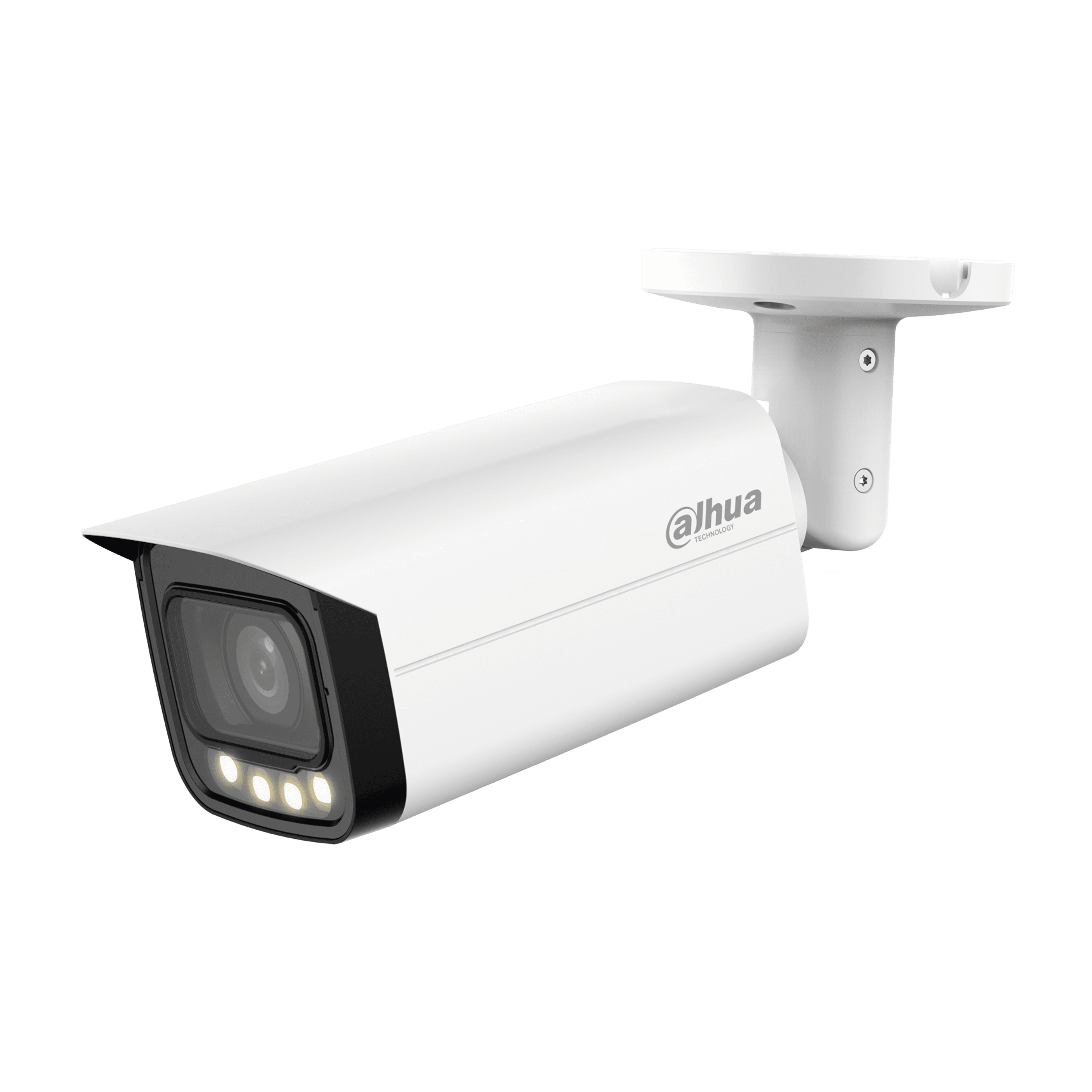

Dahua 5MP Full-color HDCVI Bullet Camera HAC-HFW2509TU-A-LED
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HFW2509TU-A-LED is a 5mp full-color hdcvi bullet camera. . Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Features
Product features
+
Product features
+No additional product features have been added yet.
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HFW2509TU-A-LED
Series
HDCVI Pro Series 5MP
Camera - Image Sensor
5MP CMOS
Camera - Max. Resolution
2880 (H) × 1620 (V)
Camera - Pixel
5MP
Camera - Scanning System
Progressive
Camera - Electronic Shutter Speed
PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
Camera - S/N Ratio
> 65 dB
Camera - Min. Illumination
0.0002 Lux/F1.0, 0 Lux warm light on
Camera - Illumination Distance
60 m (196.8 ft)
Camera - Illuminator On/Off Control
Auto; manual
Camera - Illuminator Number
4 (Warm light)
Camera - Pan/Tilt/Rotation Range
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens - Lens Type
Fixed-focal
Lens - Mount Type
M12
Lens - Focal Length
2.8 mm; 3.6 mm; 6 mm
Lens - Max. Aperture
F1.0
Lens - Field of View
2.8 mm: H: 111°; V: 57°; D: 131° 3.6 mm: H: 88°; V: 46°; D: 104° 6 mm: H: 59°; V: 32°; D: 67°
Lens - Iris Type
Fixed iris
Lens - Close Focus Distance
2.8 mm: 1.5 m (4.9 ft) 3.6 mm: 2.3 m (7.5 ft) 6 mm: 4.5 m (14.8 ft)
Lens - DORI Distance
Lens | Detect | Observe | Recognize | Identify
Lens - 2.8 mm
66 m (216.5 ft) | 26.4 m (86.6 ft) | 13.2 m (43.3 ft) | 6.6 m (21.7 ft)
Lens - 3.6 mm
80 m (262.5 ft) | 32 m (105 ft) | 16 m (52.5 ft) | 8 m (26.2 ft)
Lens - 6 mm
120 m (393.7 ft) | 48 m (157.4 ft) | 24 m (78.7 ft) | 12 m (39.3 ft)
Video - Frame Rate
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Video - Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480);
Video - BLC
BLC/HLC/WDR/HLC-Pro
Video - WDR
120 dB
Video - White Balance
Auto; Area white balance
Video - Gain Control
Auto; manual
Video - Noise Reduction
3D NR
Video - Smart Illumination
Yes
Video - Defog
Electronic defog
Video - Digital Zoom
4×
Video - Mirror
Off/On
Video - Privacy Masking
Off/On (8 area, rectangle)
Certifications - Certifications
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port - Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Port - Audio Input
One channel built-in mic
Power - Power Supply
12V ±30% DC
Power - Power Consumption
Max 10.7 W (12 VDC, warm light on)
Environment - Operating Temperature
–40 °C to +60° C (–40 °F to 140 °F); < 95% (non-condensation)
Environment - Storage Temperature
–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Environment - Protection Grade
IP67
Structure - Casing
Metal throughout the whole casing
Structure - Camera Dimensions
244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")
Structure - Net Weight
0.78 kg (1.72 lb)
Structure - Gross Weight
1.04 kg (2.29 lb)
Structure - Datasheet
2024-06-12 | HAC-HFW2509TU-A-LED_S0_datasheet_20240606 | English | pdf
Package
What is included
Package contents have not yet been listed.
Support
Warranty and delivery
Warranty
Confirm manufacturer and local warranty terms before quotation.
Delivery Information
Nationwide delivery is available. Confirm availability and delivery cost before quotation.
