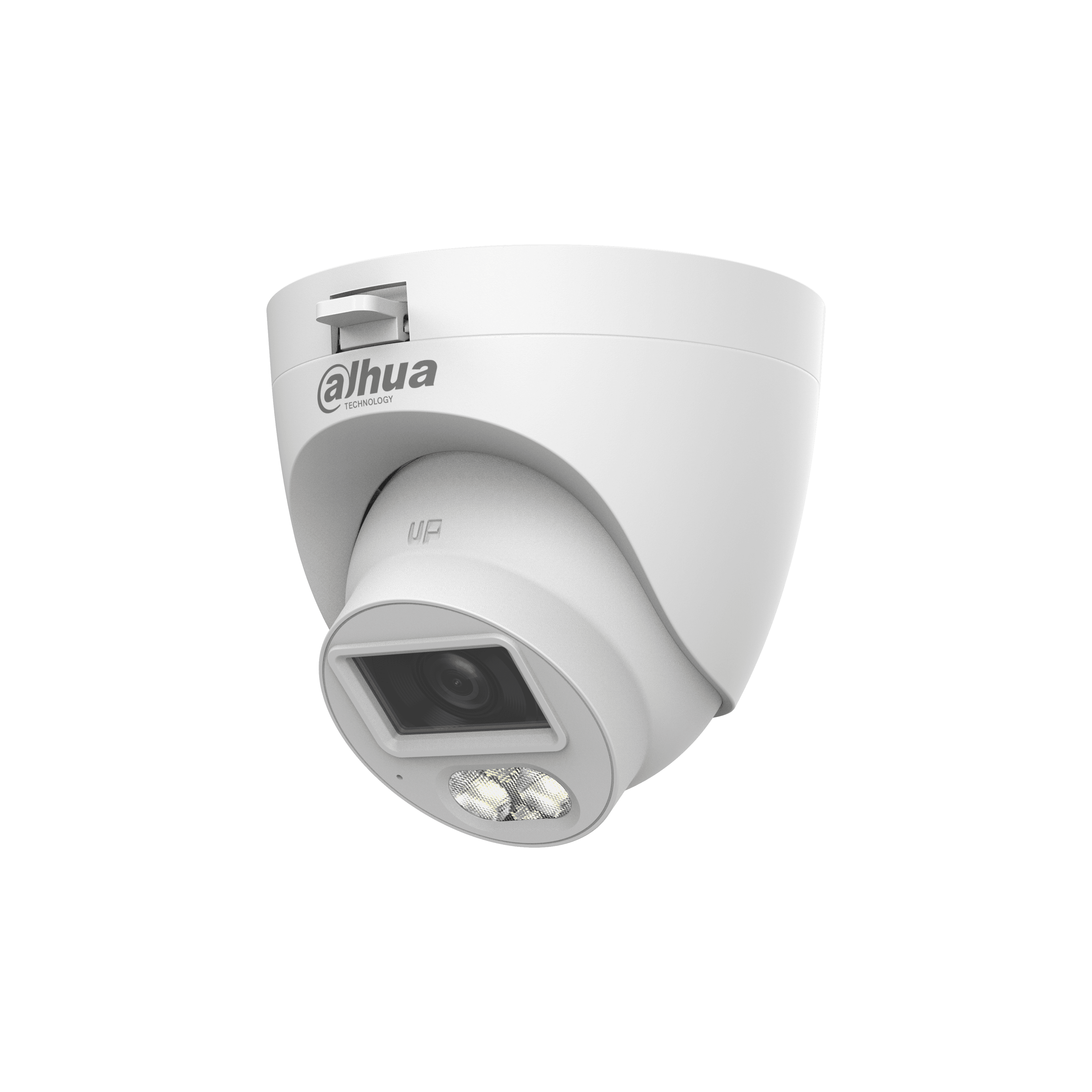

Dahua 4K Smart Dual Light HDCVI Fixed-focal Eyeball Camera HAC-HDW1801CLQ-IL-A
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HDW1801CLQ-IL-A is a 4k smart dual light hdcvi fixed-focal eyeball camera. * The parameters and datasheets below can only be applied to 1801-IL-S3 series.; * In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.; * In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version.; Max. 15 fps@4K.; Smart Dual Light.; 30 m illumination distance.; Super Adapt.. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
* The parameters and datasheets below can only be applied to 1801-IL-S3 series.
* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
* In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version.
Max. 15 fps@4K.
Features
Product features
+
Product features
+* The parameters and datasheets below can only be applied to 1801-IL-S3 series.
* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
* In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version.
Max. 15 fps@4K.
Smart Dual Light.
30 m illumination distance.
Super Adapt.
Built-in Mic.
Quick-to-install eyeball saves installation time.
3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
IP67, 12 VDC.
65 dB
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HDW1801CLQ-IL-A
Series
HDCVI Lite Series / 4K / Smart Dual Light
Image Sensor
4K CMOS
Max. Resolution
3840 (H) × 2160 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
IR: 30 m (98.43 ft); Warm Light: 30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (Multi-core light)
Angle Adjustment
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 105.5°; V: 56.5°; D: 125.3° 3.6 mm: H: 86.8°; V: 44.6°; D: 104.5°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.3 m (4.27 ft) 3.6 mm: 2.1 m (6.89 ft)
DORI Distance
Lens Detect Observe Recognize Identify 2.8 mm 88.0 m ( 288.71 ft) 35.2 m ( 115.49 ft) 17.6 m ( 57.74 ft) 8.8 m ( 28.87 ft) 3.6 mm 113.6 m ( 372.70 ft) 45.4 m ( 148.95 ft) 22.7 m ( 74.48 ft) 11.4 m ( 37.40 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Lens
Detect
2.8 mm
88.0 m ( 288.71 ft)
3.6 mm
113.6 m ( 372.70 ft)
Video Frame Rate
CVI: PAL: 4K@15 fps; NTSC: 4K@15 fps; AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps; TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps; CVBS: PAL: 960H NTSC: 960H
Resolution
4K (3840 × 2160); 960H (960 × 576/960 × 480)
Day/Night
Auto(ICR)/Color/B/W
BLC
BLC; HLC; WDR
WDR
WDR
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D NR
Illumination Mode
Smart IR&WL(CVI,TVI); WL Mode; IR Mode
Mirror
Yes
Certifications
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Built-in Mic
Yes
Camera Audio
CVI; TVI
Pick-up Distance
8 m (26.25 ft)
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power Supply
12 VDC (±30%)
Power Consumption
Max 4.1 W (12 VDC, IR on)
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Casing Material
Plastic
Product Dimensions
Φ97.4 mm × 92.9 mm (Φ3.83" × 3.66")
Net Weight
0.19 kg (0.42 lb)
Gross Weight
0.26 kg (0.57 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
