Dahua • CCTV & Surveillance

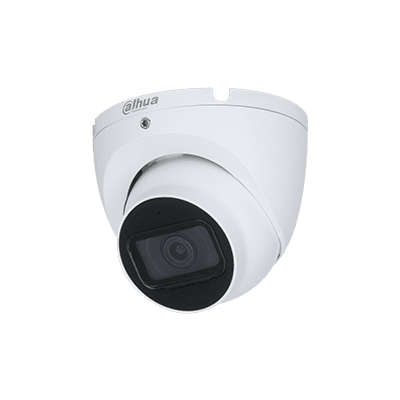

Dahua 4K Real-time HDCVI IR Eyeball Camera HAC-HDW1800TLM(-A)
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HDW1800TLM(-A) is a 4k real-time hdcvi ir eyeball camera. Max. 4K resolution; CVI/CVBS/AHD/TVI switchable; 3.6 mm fixed lens (2.8 mm optional); Built-in mic (-A); Max. IR length 30 m, Smart IR; IP67, DC12V. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
Max. 4K resolution
CVI/CVBS/AHD/TVI switchable
3.6 mm fixed lens (2.8 mm optional)
Built-in mic (-A)
Features
Product features
+
Product features
+Max. 4K resolution
CVI/CVBS/AHD/TVI switchable
3.6 mm fixed lens (2.8 mm optional)
Built-in mic (-A)
Max. IR length 30 m, Smart IR
IP67, DC12V
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HDW1800TLM(-A)
Series
HDCVI Lite Series / 4K
Image Sensor
4K CMOS
Max. Resolution
3840 (H )× 2160 (V)
Pixel
8 MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100, 000s NTSC: 1/30 s–1/100, 000 s
S/N Ratio
> 65 dB
Min. Illumination
0.03Lux/F2.0, 30IRE, 0Lux IR on
Illumination Distance
30 m (98.4 ft)
Illuminator On/Off Control
Auto; manual
Illuminator Number
1 (IR light)
Pan/Tilt/Rotation Range
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type
Fixed lens
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F2.0
Field of View
2.8 mm:H:105° V: 56° D: 125° 3.6 mm: H:87° V: 47° D: 104°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)
DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm
75.0 m (246.1 ft) 30.0 m (98.4 ft) 15.0 m (49.2 ft) 8.0 m (26.2ft)
3.6 mm
146.0 m (479.0 ft) 58.0 m (190.3 ft) 16.0 m (52.5 ft) 15.0 m (49.2 ft)
Video Frame Rate
CVI: PAL:4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps; NTSC:4K@30fps; 4K@15fps; 5M@20fps; 4M@30fps; AHD: PAL: 4K@15fps; NTSC:4K@15fps; TVI: PAL: 4K@15fps; NTSC:4K@15fps; CVBS: PAL: 960H; NTSC: 960H
Resolution
4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)
Day/Night
Auto switch by ICR
BLC
BLC/HLC/DWDR
WDR
DWDR
White Balance
Auto/Manual
Gain Control
Auto/Manual
Noise Reduction
2D NR
Smart Illumination
Yes
Mirror
Off/On
Privacy Masking
Off/On (8 area, rectangle)
Certifications
CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input
One channel built-in mic (-A)
Power Supply
12V ±30% DC
Power Consumption
Max 4.3 W (12V DC, IR on)
Operating Temperature
–40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Storage Temperature
–40°C to +60°C (–40°F to 140°F); < 95% (non-condensation)
Protection Grade
IP67
Casing
Metal throughout the whole casing
Camera Dimensions
φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight
0.33 kg (0.73 lb)
Gross Weight
0.47 kg (1.04 lb)
Package
What is included
Package contents have not yet been listed.
Support
Warranty and delivery
Warranty
Confirm manufacturer and local warranty terms before quotation.
Delivery Information
Nationwide delivery is available. Confirm availability and delivery cost before quotation.
JakShield Installation
Need professional installation?
JakShield can supply, install, configure and support this product.
