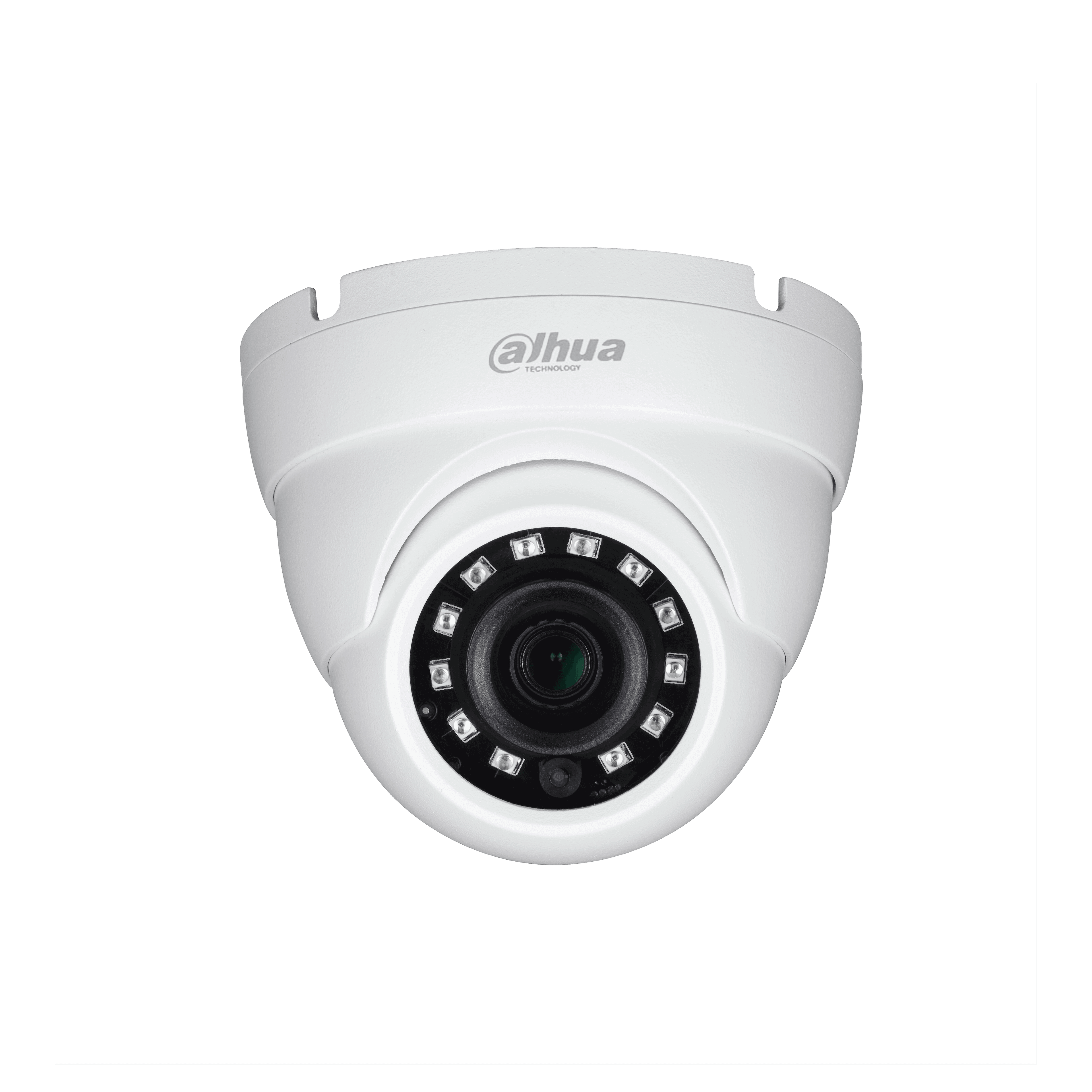

Dahua 4K Real-time HDCVI IR Eyeball Camera HAC-HDW1800M
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HDW1800M is a 4k real-time hdcvi ir eyeball camera. Max. 4K resolution, real-time video transmission; CVI/CVBS/AHD/TVI switchable; Fixed lens (2.8mm; 3.6mm; 6mm optional); Max. IR length 30m, Smart IR; IP67, 12V±30%DC. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
Max. 4K resolution, real-time video transmission
CVI/CVBS/AHD/TVI switchable
Fixed lens (2.8mm; 3.6mm; 6mm optional)
Max. IR length 30m, Smart IR
Features
Product features
+
Product features
+Max. 4K resolution, real-time video transmission
CVI/CVBS/AHD/TVI switchable
Fixed lens (2.8mm; 3.6mm; 6mm optional)
Max. IR length 30m, Smart IR
IP67, 12V±30%DC
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HDW1800M
Series
HDCVI Lite Series / 4K
Image Sensor
1/2.7 inch CMOS
Effective Pixels
3840 (H)× 2160 (V), 4K
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
S/N Ratio
>65dB
Minimum Illumination
0.03Lux/F2.0, 30IRE, 0Lux IR on
Fill Light Working Distance
30 m (98.4 ft)
IR On/Off Control
Auto; manual
IR LED Number
12
Pan/Tilt/Rotation Range
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm; 6 mm
Max. Aperture
F2.0
Angle of View
2.8 mm: 125° x 105° x 56° (diagonal x horizontal x vertical) 3.6 mm: 104° x 87° x 47° (diagonal x horizontal x vertical) 6 mm: 62.4° x54.7° x31.3°(diagonal x horizontal x vertical)
Iris Type
Fixed iris
Close Focus Distance
2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) 6 mm: 3.6 m (11.8 ft)
DORI Distance
Lens Detect Observe Recognize Identify
2.8mm
74.7 m (245.1 ft) 29.9 m (98.1 ft) 14.9 m (48.9ft) 7.5 m (24.6 ft)
3.6mm
106.7 m (350.1 ft) 42.7 m (140.1 ft) 21.3 m (69.9 ft) 10.7 m (35.1 ft)
6mm
160m (524.9 ft) 64 m (210.0ft) 32 m (105.0ft) 16 m (52.5ft)
Frame Rate
CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H
Resolution
4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/Night
Auto switch by ICR
BLC
BLC/HLC/WDR
WDR
DWDR
White Balance
Auto; manual
Gain Control
Auto; manual
Noise Reduction
2D NR
Smart IR
Yes
Mirror
Off/On
Privacy Masking
Off/On (8 area, rectangle)
Certifications
CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply
12V ±30% DC
Power Consumption
Max 4.3W (12V DC, IR on)
Operating Temperature
-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
Storage Temperature
-40°C to +60°C (-40°F to +140°F); <95% (non-condensation)
Protection Grade
IP67
Casing
Metal throughout the whole casing
Camera Dimensions
φ93.4mm×79.4mm ( φ3.68"×3.13" )
Net Weight
0.27 Kg (0.60lb)
Gross Weight
0.35 Kg (0.77lb)
Package
What is included
Package contents have not yet been listed.
Support
Warranty and delivery
Warranty
Confirm manufacturer and local warranty terms before quotation.
Delivery Information
Nationwide delivery is available. Confirm availability and delivery cost before quotation.
