Dahua • CCTV & Surveillance

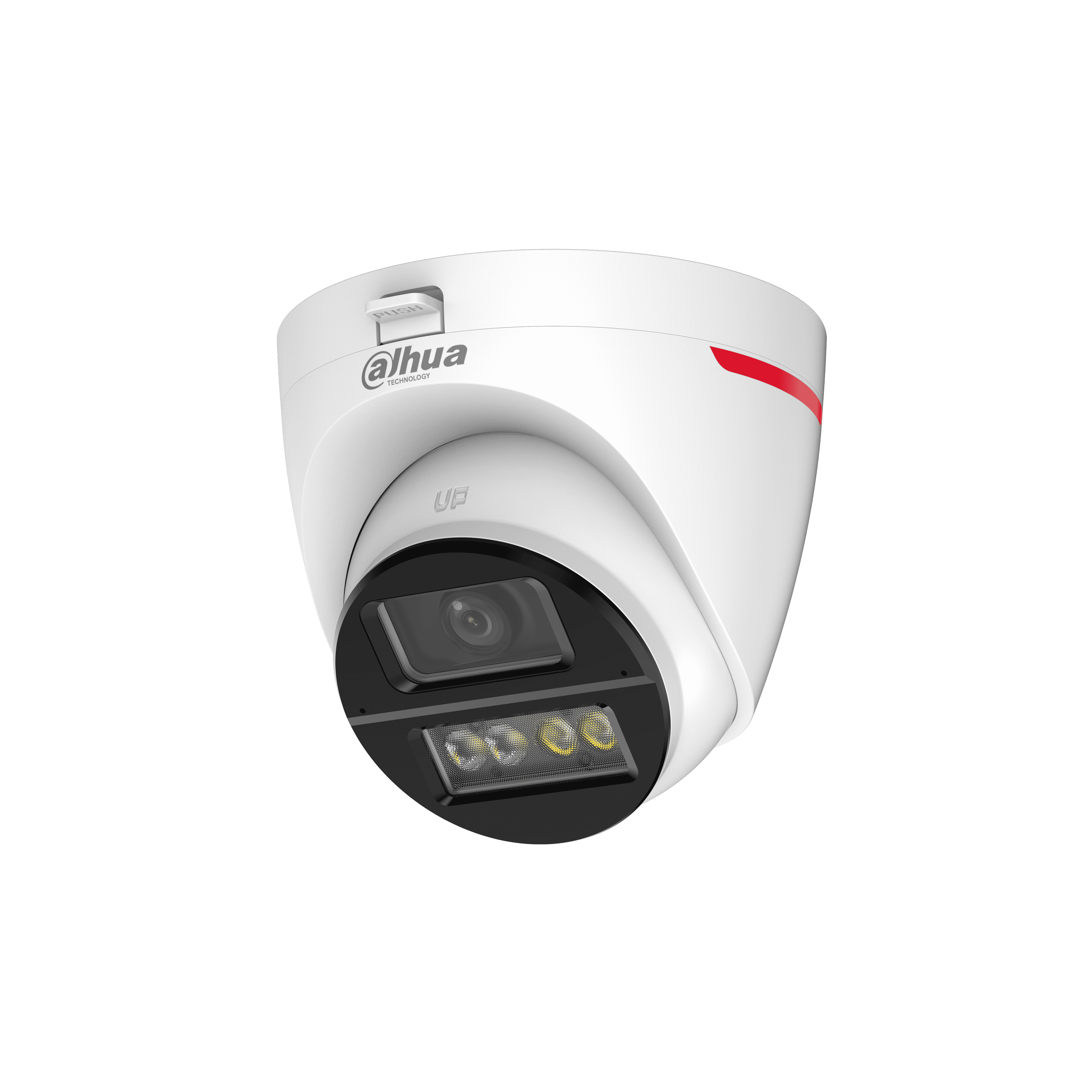

Dahua 2MP WizColor HDCVI Fixed-focal Eyeball Camera HAC-HDW1249X-IL-A-PRO
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HDW1249X-IL-A-PRO is a 2mp wizcolor hdcvi fixed-focal eyeball camera. * In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.; Max. 30 fps@1080p; AI-ISP.; Distortion Correction.; Smart Dual Light.; Smart Light+.; 50 m illumination distance. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
Max. 30 fps@1080p
AI-ISP.
Distortion Correction.
Features
Product features
+
Product features
+* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
Max. 30 fps@1080p
AI-ISP.
Distortion Correction.
Smart Dual Light.
Smart Light+.
50 m illumination distance
Super Adapt, 130 dB true WDR, 3D NR
Built-in Dual Mic
Quick-to-install eyeball saves installation time.
3.6 mm fixed lens (2.8 mm optional)
CVI/CVBS/AHD/TVI switchable
IP67, 12 VDC
65 dB
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HDW1249X-IL-A-PRO
Series
HDCVI Lite Series / 1080P
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.0001 lux@F1.0 (Color, 30 IRE) 0.00001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
IR: 50 m (164.04 ft); Warm light: 50 m (164.04 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
4 (Multi-core light)
Angle Adjustment
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.0
Field of View
2.8 mm: H: 101.8°; V: 54.4°; D: 122.1° 3.6 mm: H: 84.2°; V: 45.3°; D: 98.9°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.6 m (5.25 ft)
DORI Distance
Lens Detect Observe Recognize Identify 2.8 mm 45.6 m ( 149.61 ft) 18.2 m ( 59.71 ft) 9.1 m ( 29.86 ft) 4.6 m ( 15.09 ft) 3.6 mm 55.6 m ( 182.41 ft) 22.2 m ( 72.83 ft) 11.1 m ( 36.42 ft) 5.6 m ( 18.37 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Lens
Detect
2.8 mm
45.6 m ( 149.61 ft)
3.6 mm
55.6 m ( 182.41 ft)
Video Frame Rate
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H
Resolution
1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night
Auto(ICR)/Color/B/W
BLC
BLC; HLC; WDR
WDR
130 dB
White Balance
Auto
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
Yes (It needs to be controlled through the XVR)
Illumination Mode
Yes (It needs to be controlled through the XVR)
Mirror
Yes (It needs to be controlled through the XVR)
Certifications
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Built-in Mic
Yes, built-in dual Mic
Camera Audio
CVI
Pick-up Distance
12 m (39.37 ft)
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power Supply
12 VDC (±30%)
Power Consumption
Max 5.6 W (12 VDC, LED on)
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Casing Material
Dome (metal + plastic) + plastic enclosure
Product Dimensions
Φ109.9 mm × 102.2 mm (Φ4.33" × 4.02")
Net Weight
0.33 kg (0.73 lb)
Gross Weight
0.45 kg (0.99 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
Package
What is included
Package contents have not yet been listed.
Support
Warranty and delivery
Warranty
Confirm manufacturer and local warranty terms before quotation.
Delivery Information
Nationwide delivery is available. Confirm availability and delivery cost before quotation.
JakShield Installation
Need professional installation?
JakShield can supply, install, configure and support this product.
