Dahua • CCTV & Surveillance

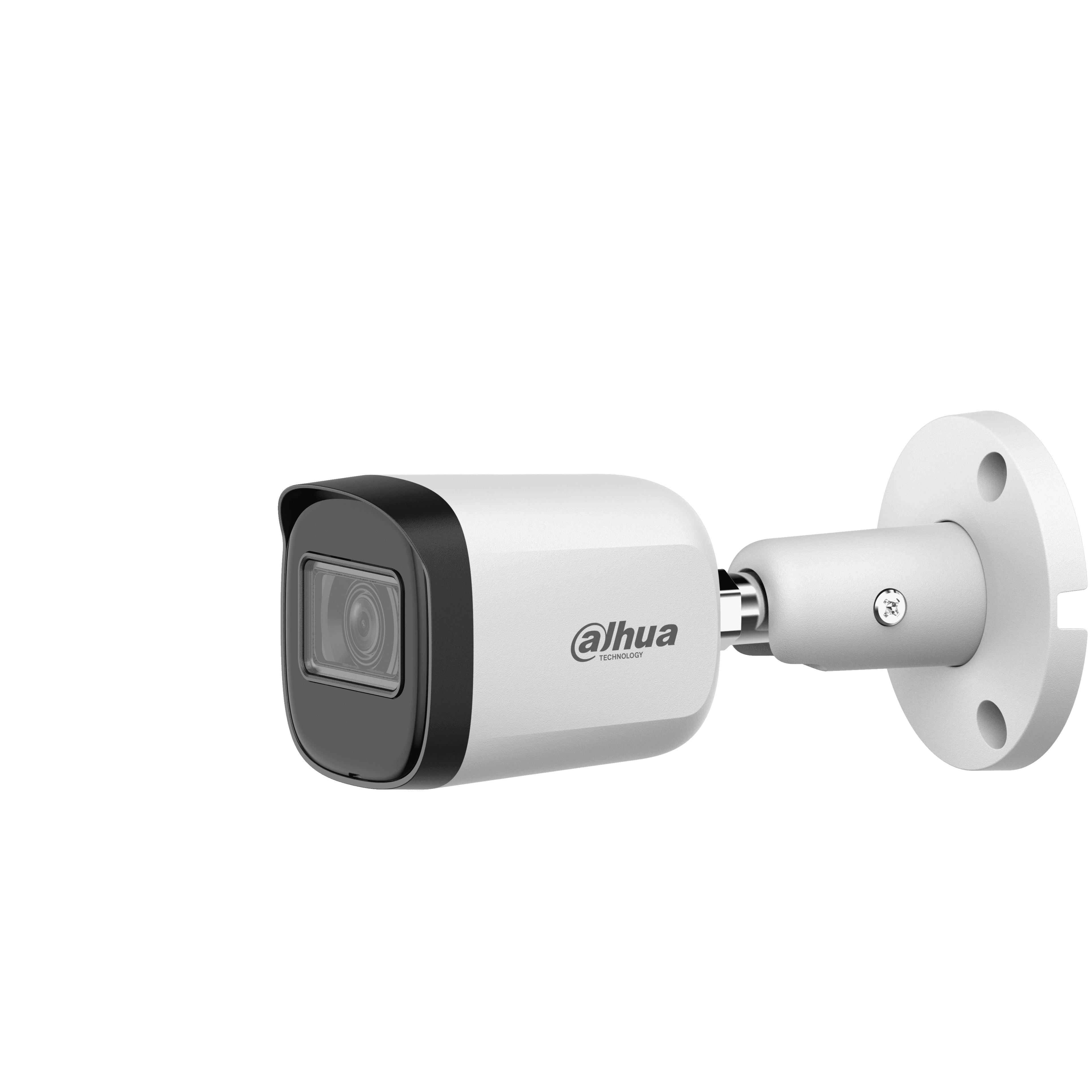

Dahua 2MP IR HDCVI Fixed-focal Bullet Camera HAC-B2A21-U
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-B2A21-U is a 2mp ir hdcvi fixed-focal bullet camera. > Max. 30 fps@1080p.; > Smart IR Illumination.; > 30 m illumination distance.; > 3.6 mm fixed lens (2.8 mm, 6 mm optional).; > CVI/CVBS/AHD/TVI switchable.; > IP67, 12 VDC.. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
> Max. 30 fps@1080p.
> Smart IR Illumination.
> 30 m illumination distance.
> 3.6 mm fixed lens (2.8 mm, 6 mm optional).
Features
Product features
+
Product features
+> Max. 30 fps@1080p.
> Smart IR Illumination.
> 30 m illumination distance.
> 3.6 mm fixed lens (2.8 mm, 6 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Specifications
Technical details
Brand
Dahua
Model Number
HAC-B2A21-U
Series
Cooper Series
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s
Min. Illumination
0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
30 m (98.43 ft)
Illuminator On/Off Control
Auto;Manual
Illuminator Number
2 (IR light)
Angle Adjustment
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm; 6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 2.4 m (7.87 ft)
DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm
44.7 m (146.65 ft) 17.9 m (58.73 ft) 8.9 m (29.20 ft) 4.5 m (14.76 ft)
3.6 mm
55.0 m (180.45 ft) 22.0 m (72.18 ft) 11.0 m (36.09 ft) 5.5 m (18.04 ft)
6 mm
102.9 m (337.6 ft) 41.1 m (134.84 ft) 20.6 m (67.59 ft) 10.3 m (33.79 ft)
Video Frame Rate
CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
Resolution
1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night
Auto(ICR)/Color/B/W
BLC
BLC; DWDR
WDR
DWDR
White Balance
Auto
Gain Control
Auto
Noise Reduction
2D NR
Illumination Mode
Smart IR
Certifications
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power Supply
12 VDC ± 30%
Power Consumption
Max 2.8 W (12 VDC, IR on)
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection
Casing Material
Metal
Product Dimensions
150.0 mm × 69.7 mm × 70.0 mm (5.91" × 2.74" × 2.76")
Net Weight
0.27 kg (0.60 lb)
Gross Weight
0.33 kg (0.73 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
Class
Date Title Language Type Download
Datasheet
2023-11-01 HAC-B2A21-U_S0_datasheet_20240520 English pdf
Package
What is included
Package contents have not yet been listed.
Support
Warranty and delivery
Warranty
Confirm manufacturer and local warranty terms before quotation.
Delivery Information
Nationwide delivery is available. Confirm availability and delivery cost before quotation.
