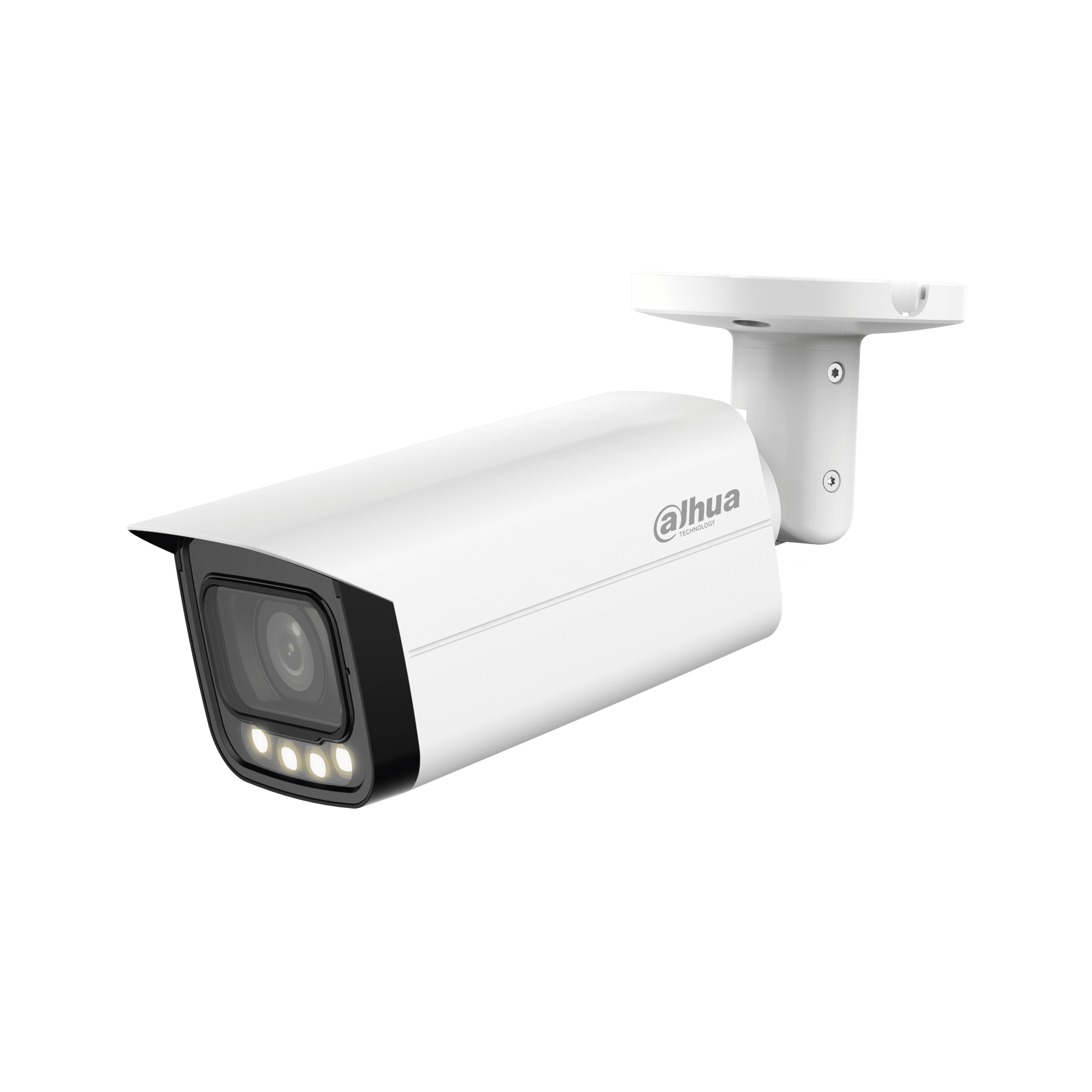

Dahua 2MP Full-color HDCVI Bullet Camera HAC-HFW2249TU-A-LED
Price
Call for Price
In Stock
Ready for purchase
Nationwide Delivery
Fee confirmed by location
Installation
Professional setup available
JakShield will confirm availability, pricing and installation details.
Product Details
About this product
The Dahua HAC-HFW2249TU-A-LED is a 2mp full-color hdcvi bullet camera. * The parameters and datasheets below can only be applied to 2249-S2 series.; > 24/7 color imaging, Max. 30 fps@1080p.; > 60 m illumination distance.; > Super Adapt, 120 dB true WDR, 3D NR.; > Built-in mic.; > 3.6 mm fixed lens (2.8 mm, 6 mm optional).; > CVI/CVBS/AHD/TVI switchable.. Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.
Highlights
Why customers choose it
* The parameters and datasheets below can only be applied to 2249-S2 series.
> 24/7 color imaging, Max. 30 fps@1080p.
> 60 m illumination distance.
> Super Adapt, 120 dB true WDR, 3D NR.
Features
Product features
+
Product features
+* The parameters and datasheets below can only be applied to 2249-S2 series.
> 24/7 color imaging, Max. 30 fps@1080p.
> 60 m illumination distance.
> Super Adapt, 120 dB true WDR, 3D NR.
> Built-in mic.
> 3.6 mm fixed lens (2.8 mm, 6 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, DC 12 V.
Specifications
Technical details
Brand
Dahua
Model Number
HAC-HFW2249TU-A-LED
Series
HDCVI Pro Series 1080P
Camera - Image Sensor
2MP CMOS
Camera - Max. Resolution
1920 (H) × 1080 (V)
Camera - Pixel
2MP
Camera - Scanning System
Progressive
Camera - Electronic Shutter Speed
PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s
Camera - S/N Ratio
> 65 dB
Camera - Min. Illumination
0.0002 Lux/F1.0, 0 Lux White Light on
Camera - Illumination Distance
60 m (196.9 ft)
Camera - Illuminator On/Off Control
Auto; manual
Camera - Illuminator Number
4
Camera - Pan/Tilt/Rotation Range
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°"
Lens - Lens Type
Fixed lens
Lens - Mount Type
M12
Lens - Focal Length
2.8 mm; 3.6 mm; 6 mm
Lens - Max. Aperture
F1.0
Lens - Field of View
2.8 mm: H: 106°; V: 55°; D: 125° 3.6 mm: H: 84°; V: 44°; D: 99° 6 mm: H: 57°; V: 31°; D: 65°
Lens - Iris Type
Fixed iris
Lens - Close Focus Distance
2.8 mm: 1 m (3.3 ft) 3.6 mm: 1.7 m (5.6 ft) 6 mm: 4.3m (14.1 ft)
Lens - DORI Distance
Lens | Detect | Observe | Recognize | Identify
Lens - 2.8 mm
44.9 m (147.3 ft) | 17.9 m (58.7 ft) | 8.9 m (29.2 ft) | 4.6 m (15.1 ft)
Lens - 3.6 mm
55.2 m (181.1 ft) | 22.1 m (72.5 ft) | 11.0 m (36.1 ft) | 5.5 m (18.0 ft)
Lens - 6 mm
82.8 m (271.7 ft) | 33.1 m (108.6 ft) | 16.6 m (54.5 ft) | 8.3 m (27.2 ft)
Video - Frame Rate
CVI: PAL: 1080P@25fps NTSC: 1080P@30fps AHD: PAL: 1080P@25fps NTSC: 1080P@30fps TVI: PAL: 1080P@25fps NTSC: 1080P@30fps CVBS: PAL: 960H NTSC: 960H
Video - Resolution
1080P (1920 × 1080) ; 960H (960× 576/960 × 480) ;
Video - BLC
BLC/HLC/WDR/HLC-Pro
Video - WDR
120dB
Video - White Balance
Auto; Area white balance
Video - Gain Control
Auto; manual
Video - Noise Reduction
3D NR
Video - Smart Light
Yes
Video - Mirror
Off/On
Video - Privacy Masking
Off/On (8 area, rectangle)
Certifications - Certifications
CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port - Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Port - Audio Input
One channel built-in mic
Power - Power Supply
12V ±30% DC
Power - Power Consumption
Max 10.2W (12V DC, warm light on)
Environment - Operating Temperature
–40°C to +60°C (–40°F to 140°F) ; <95% (non-condensation)
Environment - Storage Temperature
–40°C to +60°C (–40°F to 140°F) ;<95% (non-condensation)
Environment - Protection Grade
IP67
Structure - Casing
Metal throughout the whole casing
Structure - Camera Dimensions
244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")
Structure - Net Weight
0.76 kg (1.68 lb)
Structure - Gross Weight
1.02 kg (2.25 lb)
Structure - Datasheet
2024-07-05 | HAC-HFW2249TU-A-LED_S0_datasheet_20240701 | English | pdf
