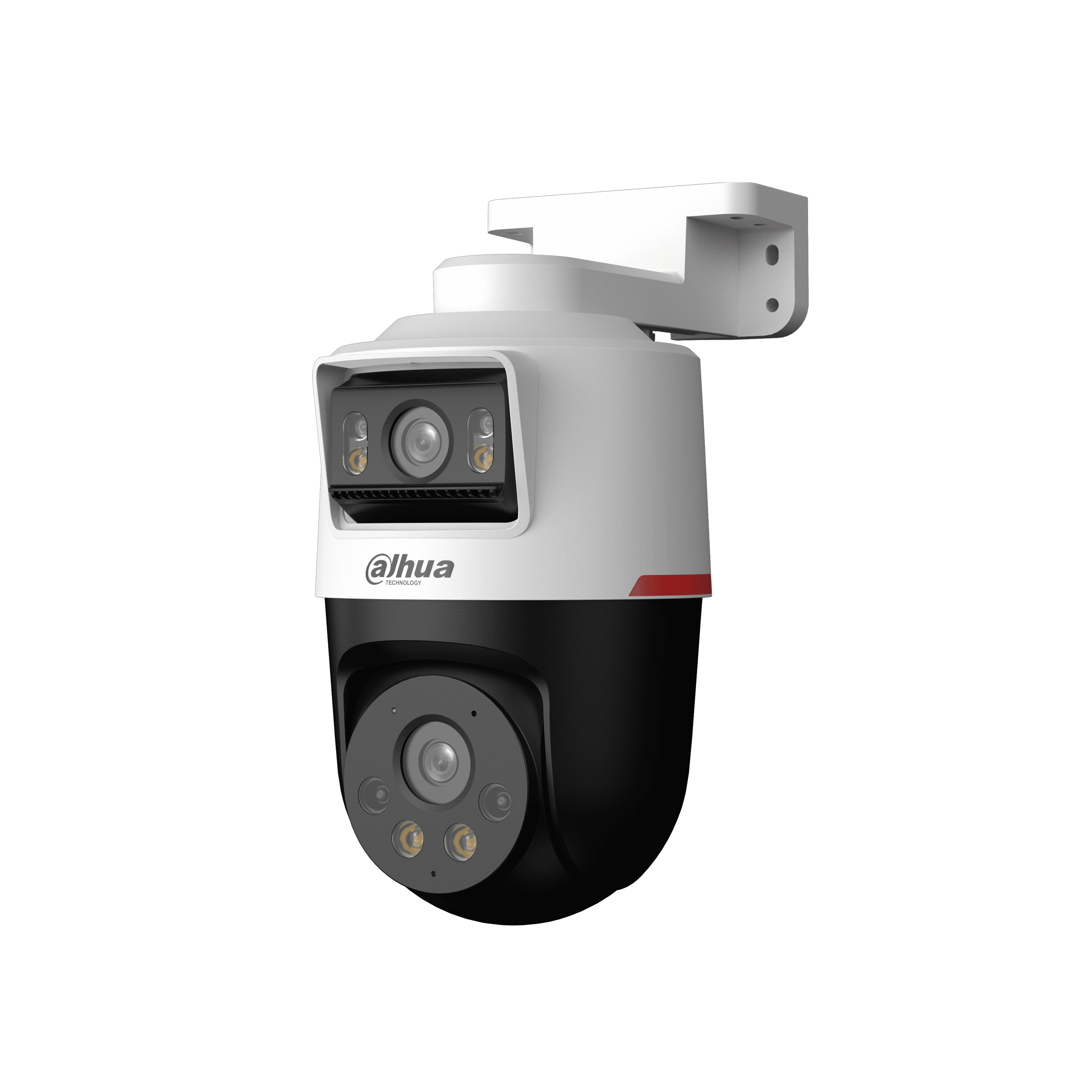

Dahua 2+2 MP WizColor Active Deterrance Dual-lens Fixed-focal Pan & Tilt WizSense Network Camera IPC-PTS2249B-E2-S-PV-PRO
DahuaJakShield Verified
Official ManufacturerIn Stock

Dahua • IP Cameras & PoE Systems

Dahua 2+2 MP WizColor Active Deterrance Dual-lens Fixed-focal Pan & Tilt WizSense Network Camera IPC-PTS2249B-E2-S-PV-PRO

Model: IPC-PTS2249B-E2-S-PV-PROSKU: IPC-PTS2249B-E2-S-PV-PROType: IP PTZ Cameras

Price

Call for Price

In Stock

Ready for purchase

Nationwide Delivery

Fee confirmed by location

Installation

Professional setup available

JakShield will confirm availability, pricing and installation details.

Product Details

About this product

The Dahua IPC-PTS2249B-E2-S-PV-PRO is a 2+2 mp wizcolor active deterrance dual-lens fixed-focal pan & tilt wizsense network camera. > 2-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.; > Outputs max. 2 MP (1920 × 1080)@25/30 fps.; > H.265 codec, high compression rate, ultra-low bit rate.; > Built-in warm light, and the max. illumination distance is 30 m.; > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.; > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.; > Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). Confirm Ghana stock, supplier pricing, included accessories and local warranty terms before quotation.

Highlights

Why customers choose it

> 2-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light, and the max. illumination distance is 30 m.

Features

Product features

+

> 2-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light, and the max. illumination distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; supports two-way talk.

> 12 VDC/PoE power supply, easy for installation.

> IP66 protection.

> Sound and light alarm.

> SMD Plus.

> One-tap arming/disarming.

Specifications

Technical details

Brand

Dahua

Model Number

IPC-PTS2249B-E2-S-PV-PRO

Series

WizSense 2 Series

Camera - Image Sensor

Channel 1 (PT Lens): 1/2.9" CMOS Channel 2 (Fixed Lens): 1/2.9" CMOS

Camera - Max. Resolution

Channel 1 (PT Lens): 1920 (H) × 1080 (V) Channel 2 (Fixed Lens): 1920 (H) × 1080 (V)

Camera - ROM

128 MB

Camera - RAM

256 MB

Camera - Scanning System

Progressive

Camera - Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Camera - Min. Illumination

0.0006 lux@F1.0

Camera - S/N Ratio

>56 dB

Camera - Illumination Distance

Up to 30 m (98.43 ft) (Warm light)

Camera - Illuminator On/Off Control

Auto; Manual

Camera - Illuminator Number

4 (Warm light)

Lens - Lens Type

Channel 1 (PT Lens): Fixed-focal Channel 2 (Fixed Lens): Fixed-focal

Lens - Lens Mount

M12

Lens - Focal Length

Channel 1 (PT Lens): 3.6 mm Channel 2 (Fixed Lens): 3.6 mm

Lens - Max. Aperture

Channel 1 (PT Lens): F1.0 Channel 2 (Fixed Lens): F1.0

Lens - Field of View

Channel 1 (PT Lens): H: 81°; V: 44°; D: 95° Channel 2 (Fixed Lens): H: 81°; V: 44°; D: 95°

Lens - Iris Control

Fixed

Lens - Close Focus Distance

Channel 1 (PT Lens): 1.7 m (5.58 ft) Channel 2 (Fixed Lens): 1.7 m (5.58 ft)

Lens - DORI Distance

Lens | Detect | Observe | Recognize | Identify

Lens - Channel 1 (PT Lens)

55.7 m (182.74 ft) | 22.3 m (73.16 ft) | 11.1 m (36.42 ft) | 5.6 m (18.37 ft)

Lens - Channel 2 (Fixed Lens)

55.7 m (182.74 ft) | 22.3 m (73.16 ft) | 11.1 m (36.42 ft) | 5.6 m (18.37 ft)

Intelligence - IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Intelligence - SMD

SMD Plus

Intelligence - Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video - Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Video - Smart Codec

Smart H.265+; Smart H.264+

Video - Video Frame Rate

Channel 1 (PT Lens): Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Channel 2 (Fixed Lens): Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video - Streaming Capability

2 streams

Video - Resolution

Channel 1 (PT Lens): 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Channel 2 (Fixed Lens): 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video - Bit Rate Control

VBR; CBR

Video - Video Bit Rate

H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps

Video - Day/Night

Color/B/W

Video - BLC

Yes

Video - HLC

Yes

Video - WDR

120 dB

Video - White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Video - Gain Control

Auto/Manual

Video - Noise Reduction

3D NR

Video - Motion Detection

OFF/ON (4 areas, rectangular)

Video - Region of Interest (RoI)

Yes (4 areas)

Video - Smart Illumination

Yes

Video - Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Video - Mirror

Yes

Video - Privacy Masking

4 areas

Video - LDC

Yes

Audio - Built-in MIC

Yes, built-in Mic

Audio - Built-in Speaker

Yes, built-in speaker

Audio - Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm - Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network - Network Port

RJ-45 (10/100 Base-T)

Network - SDK and API

Yes

Network - Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Network - Security

Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning

Network - Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

Network - User/Host

20 (Total bandwidth: 48 M)

Network - Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Network - Browser

IE; Chrome; Firefox

Network - Management Software

Smart PSS Lite; DSS; DMSS

Network - Mobile Client

Android;iOS

Function - Light Warning

Warm light warning Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low

Function - Sound Warning

Offers 3 sound alarms and supports importing custom sound alarms. Sound: 0–100. Play times can be set from 1 to 10.

PTZ - Pan/Tilt Range

Channel 1 (PT Lens): Pan: 0° to 350°; Tilt: 0° to 90°; Channel 2 (Fixed Lens): Pan: 0° to 326°; Tilt: –10° to 15°

PTZ - Manual Control Speed

Pan: 0.1°/s–55.4°/s; Tilt: 0.1°/s–29.3°/s

PTZ - Preset

300

PTZ - Preset Speed

Pan: 55.4°/s; Tilt: 29.3°/s

PTZ - Tour

8 (up to 32 presets per tour)

PTZ - Power-off Memory

Yes

PTZ - Idle Motion

Tour;Preset

Certification - Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power - Power Supply

12 VDC (±30%); PoE (802.3af)

Power - Power Consumption

Basic: 2.3 W (12 VDC); 3.1 W (PoE); Max.: 9.2 W (12 VDC); 10.5 W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on)

Environment - Operating Temperature

–40 °C to +50 °C (–40 °F to +122 °F)

Environment - Operating Humidity

≤95% (RH), non-condensing

Environment - Storage Temperature

–40 °C to +50 °C (–40 °F to +122 °F)

Environment - Storage Humidity

≤95% (RH), non-condensing

Environment - Protection

IP66

Structure - Casing Material

Plastic

Structure - Product Dimensions

159.4 mm × 110.1 mm × 210 mm (6.28" × 4.33" × 8.27") (L × W × H)

Structure - Net Weight

0.62 kg (1.37 lb)

Structure - Gross Weight

0.87 kg (1.92 lb)

Structure - Datasheet

2025-07-30 | IPC-PTS2249B-E2-S-PV-PRO_S0_datasheet_20250729 | English | pdf
